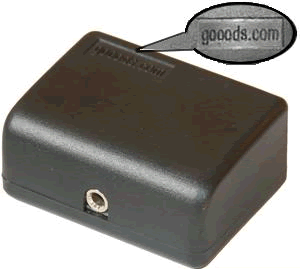

Telephone recording adapter(CE approved)

[ unit price:$9.95 ] | Buy

Overview:

You need an adapter to connect the telephone line to the computer sound card for recording.also,if you're using a tape recorder or a pen recorder,you need an adapter too.this adapter has good performance with special circuit removing the noises from the computer,the recording of the conversation will be clear and clean.

Our professionally designed adapter is fully CE approved(EN60950),See declaration.

IMPORTANT: DON'T CONNECT THE TELEPHONE LINE DIRECTLY TO THE COMPUTER SOUND CARD,THE HIGH VOLTAGE IN THE TELEPHONE LINE WILL BRING ON HARDWARE DAMAGES OF THE COMPUTER.

Parameters:

Purpose: connecting telephone line to sound card for recording
Interface: two RJ11 jacks,one 3.5mm stereo jack
Dimension: 52mm x 39mm x 23mm
Weight: 25g
Color:black
AC impedance(1KHz): >11KΩ
DC impedance: ∞
SNR: >45db
Frequency response: 300-3400Hz
Isolation: >1500V
Standard: CE/EN60950 approved, See declaration
Power supply: None

Connection:

The telephone signal is a Mono one while the sound card is Stereo,thus we can connect two adapters in one sound card,Phone spy telephone recording software manages the two channels separately,and with multiple sound cards supported in one computer,it can record 12(or more) telephone lines simultaneously in 1 computer.

We supply a Y-style audio cable to connect two adapters in one stereo jack.

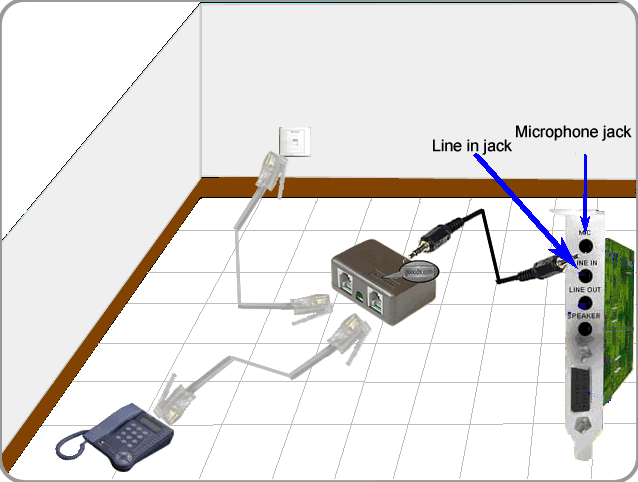

Figure 1 illustrates how to connect one adapter to a sound card(the adapter can be plugged in the Line in jack or the Microphone jack)

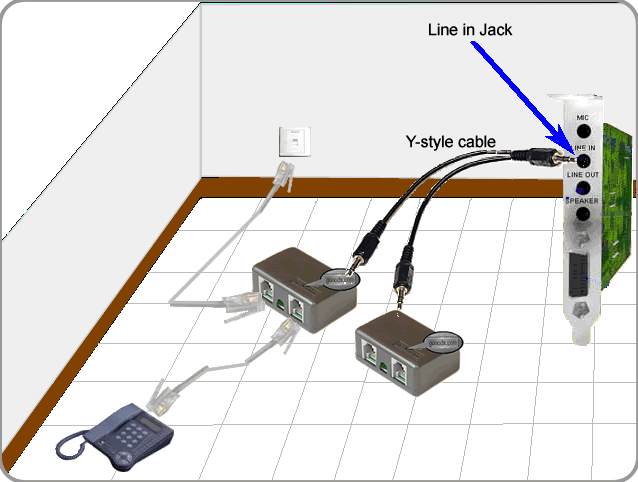

Figure 2 illustrates how to connect two adapters to a sound card(the adapter can only be plugged in the Line in Jack,because the Microphone jack is a Mono one).

Figure 1 connection of telephone recording adapter

Figure 2
